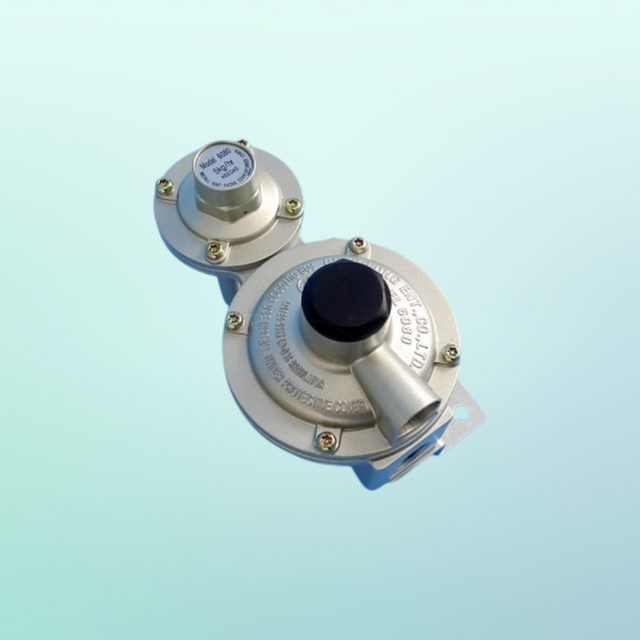

Regulator, Two Stage,f-NPT-1/4 to f-BSP-3/8

Name: Regulator, Two Stage,f-NPT-1/4 to f-BSP-3/8
Brand: CAMEC
SKU: 042050
Price: 68.95 AUD
Availability: InStock

CAMEC | SKU: 042050

$68.95

Tax included Shipping calculated at checkout.

Shipping & Delivery

Refund, Return and Warranty Policy

Have any questions?

Description

6080 integral two-stage regulator is a high pressure regulator combined with a second stage regulator. It is suitable for installing on a Recreation Vehicle with one or two gas cylinders that are manually selected. (Changeover valve required for twin bottles)

Connecting to a single gas cylinder

a) The regulator inlet has 1/4 inch female NPT (National Pipe Thread)

b) You can connect any pigtail that has 1/4 inch male NPT
or

c) You can connect a pigtail with 1/4 inch IF (Inverted Flare) using adapter ID-7599

Connecting to twin gas cylinders

a) The regulator inlet has 1/4 inch female NPT (National Pipe Thread)

b) The change-over valve has 1/4 inch IF (Inverted Flare) inlet

c) The copper pigtail, or any flexible pigtail with that thread will connect

Features

Two-stage regulation results in a consistent inlet pressure to the second stage, thereby minimizing minor outlet pressure variations from the second stage regulator.
Zinc Die Cast

Specifications

Model: 6080, 040974, 550-00298, 042050
Brand: Keefer
Mounting holes 90mm apart on main bracket and approximately 85mm on the body casting.
Inlet pressure 10 to 250psi
Outlet pressure 11" WC
Inlet 1/4 Inch FNPT.
Outlet 3/8 Inch FNPT. (connects to m-BSP-3/8)
Capacity 210,000 BTU/hr
Dimensions 142mm x 83mm wide, 75mm thick (excluding bracket)
Offset bracket adds 19mm to thickness
Shipping Weight: 450 grams.
Shipping Dimensions: 9 cm x 11 cm x 15 cm.
