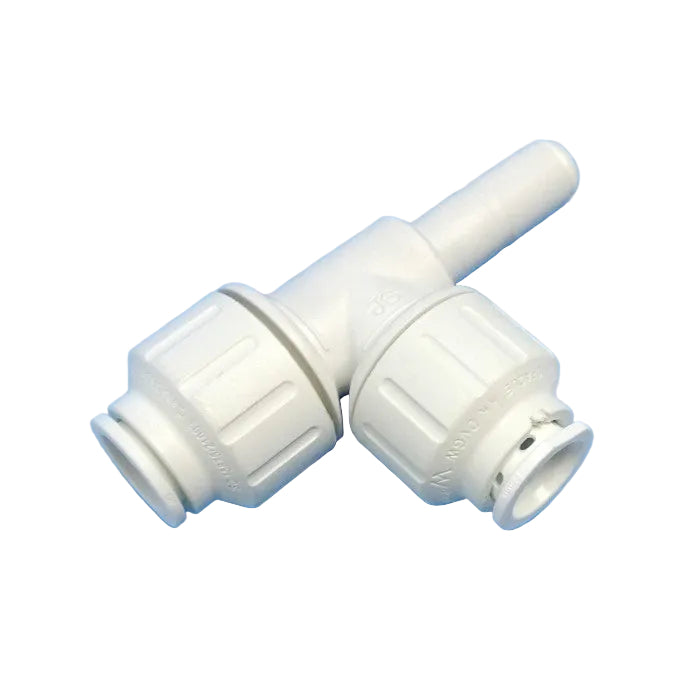

John Guest WaterMark 12mm Stem Tee

Description

This is a John Guest Watermark certified Speedfit Twist & Lock 12mm Stem Tee. The stem fitting can be coupled with push-on fittings to create custom fittings as required.

It can be used on the standard John Guest Speedfit tubing (LLDPE) and the Watermark 12mm tubing (BPEX). Ensure you use the matching pipe inserts with each style tubing, i.e. DO NOT use Watermark inserts with standard John Guest Speedfit tubing (LLDPE).

Simply push the fitting fully onto the pipe and twist the plastic nut clockwise to lock in place. Should the need arise to demount the connection, unlock the nut, push the collet towards the body of the fitting and pull the pipe to release.

Specifications

• Manufacturer Part Number: PEM531212W
• Brand: John Guest
• Barcode: 665628034044
• Suits 12 mm OD plastic pipe
• Connects to 12 mm push-on fitting
• Watermark certified for use on hot water over 90 °C
• Suitable for use on LLDPE and BPEX tubing (12 mm)
• Increased O-ring compression for a positive water seal
• Approved fitting for caravan manufacturing
