CANOPY LIFTER FLAT 700MM

• Each lifter will hold up 35kg of roof, with the standard spring included
• When replacing, it is best to replace opposite lifters at the same time, to prevent undue stress which will bend the arms

**Discounted due to stock clearance. Some may have some 'knock' markings

Description

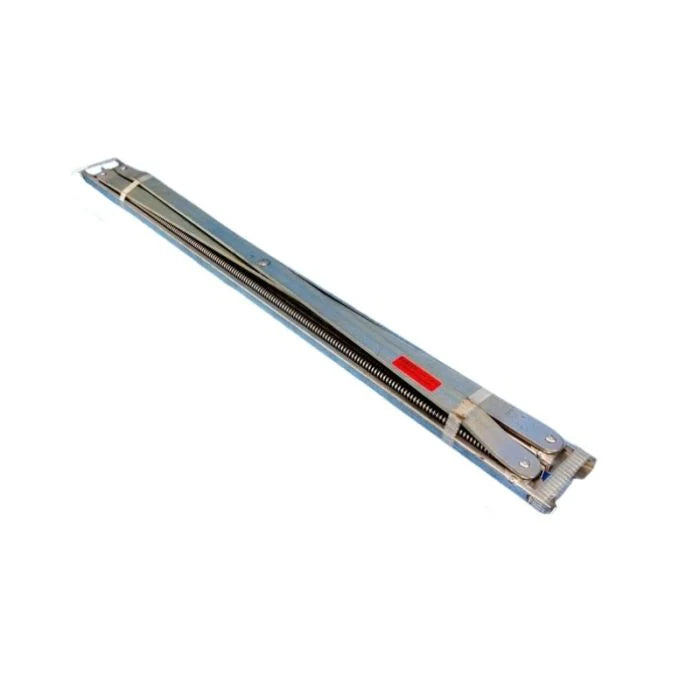

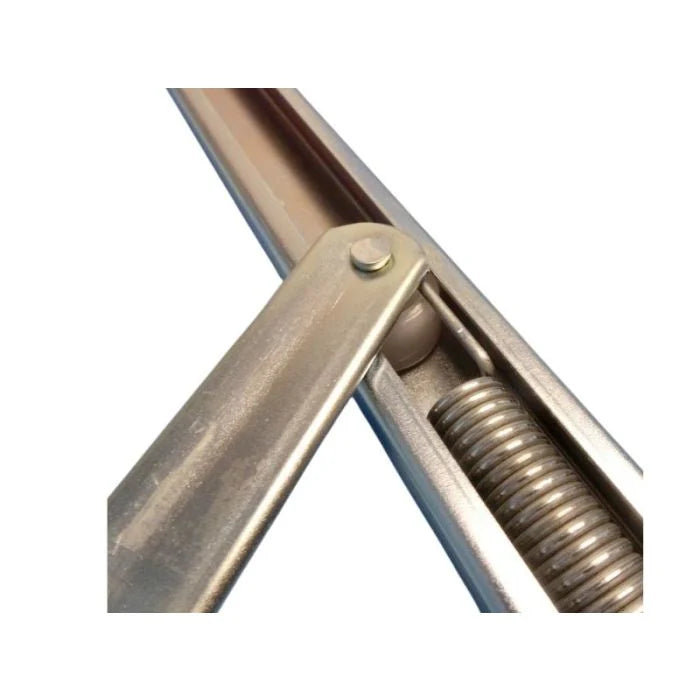

Canopy lifters BREHA. These spring loaded scissor type roof lifters are made of solid flat steel.

Features

• Each lifter will hold up 35kg of roof, with the standard spring included.

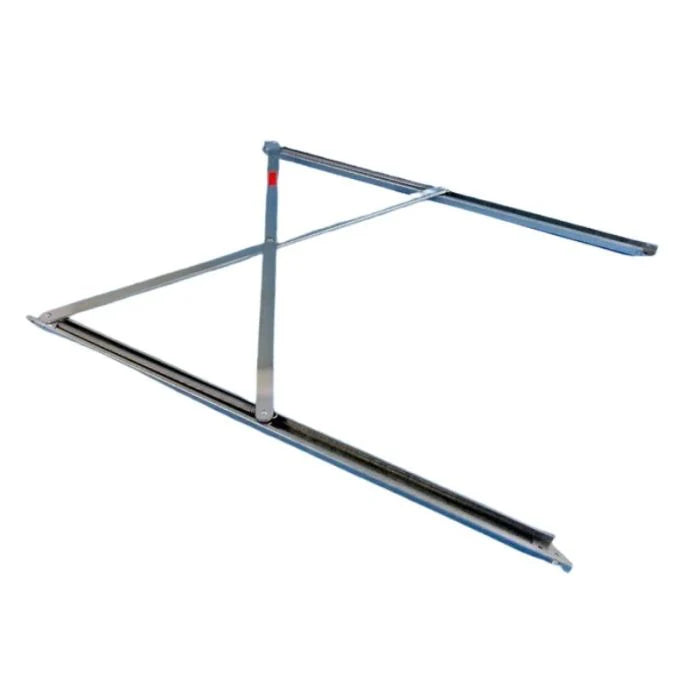

  The bottom bracket measures 700mm long, and it can lift to a maximum height of 560mm.

  When replacing, it is best to replace opposite lifters at the same time, to prevent undue stress which will bend the arms.

  These are stronger than the tubular arms.

  CARE - when fitting, insure they are replaced in the same direction as they were i.e. if the fixed corner is on the right, replace it with the fixed corner on the right.

  This will vary for each side.

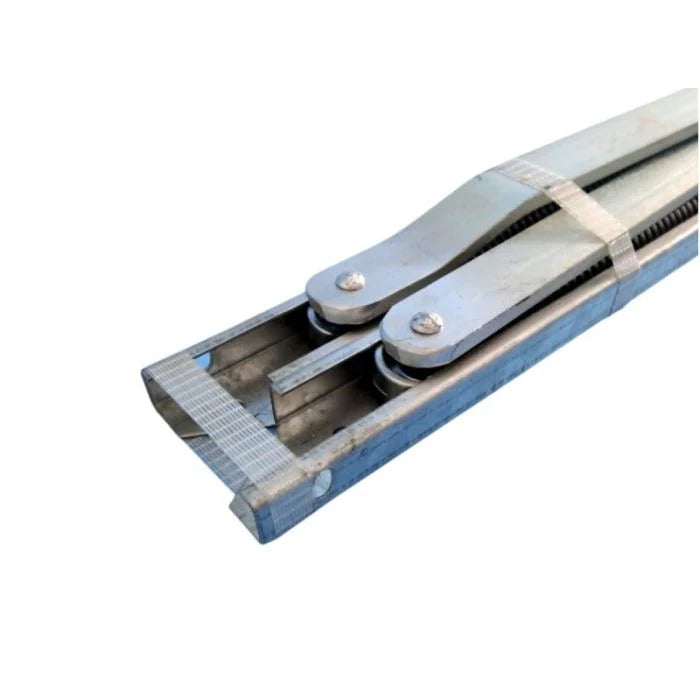

  The enlargement shows the bracket closed. The vertical height when closed is 70mm and the width is 45mm. The image shows the mounting holes in the vertical face, and there are also holes in the horizontal faces for alternate mounting.

• 1 year warranty.

Specifications

• Model: 008341, 250-00510, 40130108
• Brand: Breha
• Original Model: 7-700
• 700mm wide, 560mm high.
• Lift 35kg.
• Units: 1 x Canopy Lifter
• Shipping Weight: 2.78 Kgs.
• Shipping Dimensions: 4 cm x 7 cm x 70 cm.
