Camec  |  SKU: 051856

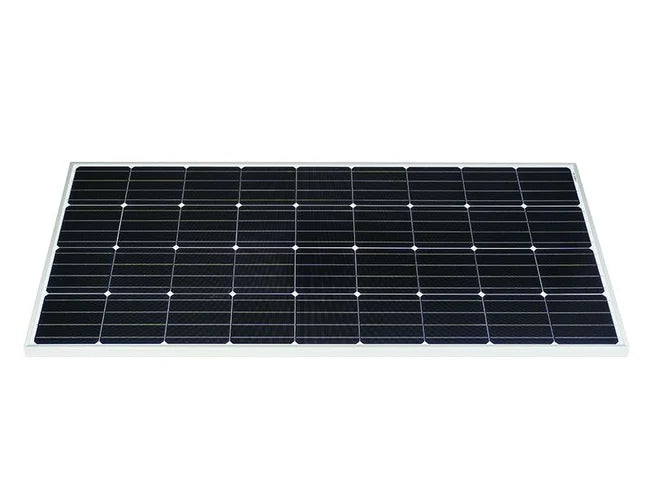

Camec 170W 12V Solar Panel

$367.80 AUD
Tax included Shipping calculated at checkout.

Camec 170W 12V Solar Panel Please contact us if this item is out of stock and you wish to purchase it. 'Pre-order' items are still available for purchase.


Pre-order now.

This is a pre-ordered item and will be ordered with the Supplier upon receipt of your payment. Please allow 7-14 business days for delivery. Please note that while do stock some Ranger products, there some Ranger products that are preordered and that will be subject to a further 4 week delay due to our Suppliers Christmas Break

Subscribe to our newsletter

Get the latest updates on all our new collections, sales, offers and product arrival dates.

Pre-order now

You can preorder this item now. Please allow between 10 to 14 business days for delivery.

Description - Please click the + sign


*Highly efficient Class a Solar cells
*Ideal for caravanning, Rv's, marine and remote back up power
*Anodized aluminium alloy frame
*Low iron high transparency tempered glass cover

CAMEC 170W mono-crystalline solar panel use solar cells which are manufactured using the latest manufacturing techniques and highest grade of mono-crystalline.Each solar cell has a SIN surfaceanti-reflective coating which provides a uniform blue colour and helps to absorb more light under all weather conditions.Together with Black Surface Field (BSF) structure, the solar cell shows superior conversion efficiency.

FEATURES
- Bypass diode to minimise power drop caused by shade
- Anti-reflective high transparency tempered glass
- Solar cell embedded in EVA
- Tedlar foil backing

SPECIFICATIONS
- Size of solar cell: 156x156mm
- Max Power Ouput (pm): 170 Watt
- Output Tolerance: +5%
- Open Circuit Voltage (Voc): 21.6V
- Short Circuit Voltage (lsc): 10.09A
- Working current (lpm): 9.44A
- Working voltage (Vpm): 18V
- Type of output terminal: MC4 Compatible
- Testing Conditions: AM11.5, 1,000W/m2, 25C
- Weight: 12.5kg

Weight 12.5kg
Power 170 Watt
Dimensions 1460 L x 664 W x 35mm H
Warranty 12 months
