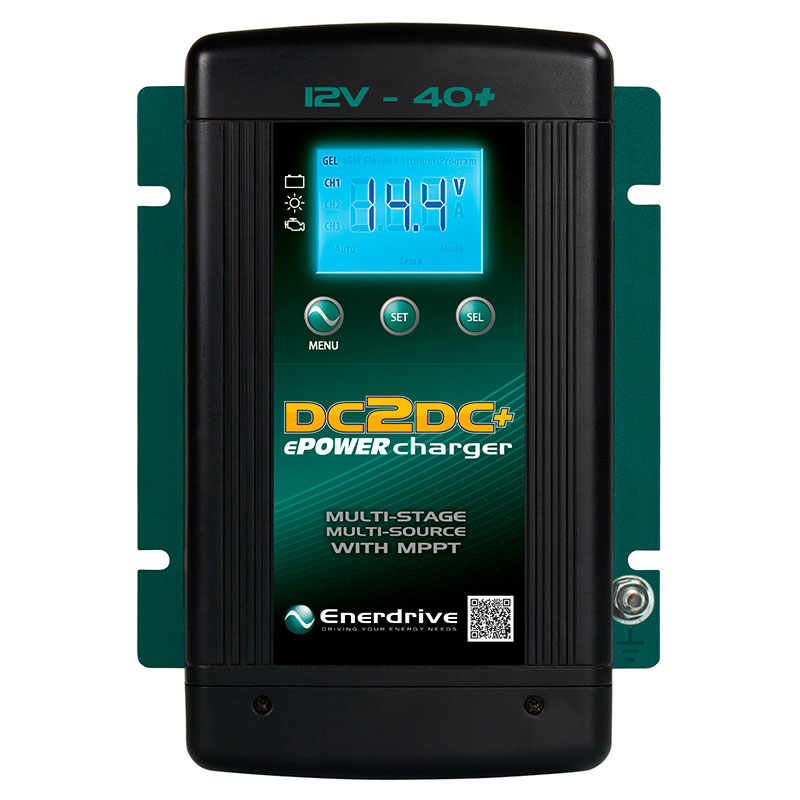

DC 2 DC 40+amp Battery Charger/ MPPT Reg
DC 2 DC 40+amp Battery Charger/ MPPT Reg Please contact us if this item is out of stock and you wish to purchase it.
Couldn't load pickup availability
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
This item dispatches directly from Supplier's Warehouse.
This item is subject to Warehouse fulfillment times. Usually 2-5 days.
Fully automatic, the multistage and multi input Enerdrive DC2DC chargers are robust and feature full with inbuilt dedicated MPPT Solar Regulator. The ultimate solution when you need to choose to charge from the engine when running or solar panels when stationary in sunny conditions.
Once set, selecting the charge source is fully automatic and controlled from within the unit without the need for external relays. Under normal charging conditions, the ePower DC2DC will do a full charge to float stage on the house battery and you can choose either GEL, AGM, Flooded, Custom Programmable or Lithium, with all the relevant information visible on the LCD display.
Employing three stage charging, once the float stage is reached, the unit will shift to power supply mode to support the on-board DC loads and/or hold a constant and safe permanent charge level. This means the charger can be permanently connected to your battery systems safeguarding the health recommendations of deep cycle batteries.
EN3DC40+ Features:
- Two totally independent DC Inputs for both engine and solar regulation charging one house battery bank output
- DC M6 screw terminals that will allow for large battery cable connection between all sources
- A dedicated Maximum Power Point (MPPT) solar regulator
- The same battery algorithms as included in Enerdrives AC mains ePOWER battery charger. GEL, AGM, Flooded, Lithium and the ability to create a full custom profile
- Vehicle input allows for either 12v or 24v and a maximum solar input of 45V/800W
- 40A+ output up to 40+°C with thermo controlled fan cooling
- Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage
- Temperature sensor included with charger for more accurate battery charging
The Enerdrive | Dometic DC2DC 40A+ (up to 50A*) Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller. With two inputs available, the main/house battery will be charged from either the engine while underway, or via the solar panels when stationary. The process to choose either engine or solar is fully automatic and both functions are controlled from within the unit itself without the need for external relays. *Vehicle Input limited to 50A, Vehicle Input voltage needs to be higher than output voltage to achieve 50A *Solar Input limited to 30A, Utilising a Higher voltage array will allow the output Amps to be greater than the 30A input limit
Features
- Two totally independent DC Inputs for both engine and solar regulation charging one house battery bank output
- DC M6 screw terminals that will allow for large battery cable connection between all sources
- A dedicated Maximum Power Point (MPPT) solar regulator
- The same battery algorithms as included in our AC mains battery charger. GEL, AGM, Flooded, Lithium and the ability to create a full custom profile
- Vehicle input allows for either 12 or 24v and a maximum solar input of 45V/800W
- 40A+ output up to 40+°C with thermo controlled fan cooling
- Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage
- Temperature sensor included with charger for more accurate battery charging
The Enerdrive | Dometic DC2DC 40A+ Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller. With two inputs available, the main/house battery will be charged from either the engine while underway, or via the solar panels when stationary. The process to choose either engine or solar is fully automatic and both functions are controlled from within the unit itself without the need for external relays.
During normal operation the DC2DC+ Battery Charger will do a full charge cycle to float stage on the house battery bank with ability to choose either GEL, AGM, Flooded, Custom Programmable or Lithium. Once float stage is reached the charger transitions to a power supply mode to support any on-board DC loads.
Multistage Charging Process
The Enerdrive | Dometic DC2DC 40A+ Battery Charger is a fully automatic, set and forget charger. It is designed to quickly and accurately recharge your deep cycle batteries utilising charger algorithms that help to maximise the life of your specialised deep cycle batteries.
The Enerdrive | Dometic DC2DC 40A+ Battery Charger features multistage smart charging technology that enables the charger to be connected to your battery bank permanently. With the input of multiple sources, you can be assured of charging your batteries whenever underway; or when the sun is shining on your solar array.
As dictated by battery manufacturer’s recommendations, deep cycle batteries require a multistage charge sequence for perfect, fast and accurate charging. The Enerdrive | Dometic DC2DC 40A+ smart charger delivers three primary charge stages.
Stage 1 – Bulk or Boost charge; The battery is charged at full rated output current of the charger until the battery reaches its final charging voltage, known as its absorption voltage. In this step, around 80% of the battery is recovered as fast as possible.
Stage 2 – Absorption Charge; With the charger voltage held steady, the remaining 20% is replaced with the charger allowing the current to taper off as the battery approaches full charge.
Stage 3 – Float; Finally, in the float stage the charger voltage is lowered and held at a constant and safe predetermined level. This prevents the battery from being overcharged, yet allows the charger to supply enough current to make up for the self-discharge losses of the battery, while supporting any additional loads connected to the battery (such as DC lighting and refrigerators). This stage allows for the charger to be used as a DC power supply.
Smart Charging Feature
The Enerdrive | Dometic DC2DC 40A+ Battery Charger will regulate its output based on the loads connected to your battery bank. This function is important to maintain the life of your battery bank as some battery chargers mistake loads for discharge and continue to keep the batteries in the bulk or absorption stage for extended periods of time, which will damage the battery bank. The Enerdrive | Dometic DC2DC 40A+ Battery Charger has two methods of load based regulation to ensure your battery charger transitions to float when it should do so.
Battery Temperature Sensor
Included standard with all Enerdrive | Dometic Battery Chargers.
Specifications
Note: Specifications subject to change without notice.
Maximising your Solar Harvest using the DC2DC+
The Solar Input on the DC2DC+ unit has a maximum rated INPUT current of 30amps. This means it is optimised for using higher voltage ‘grid’ type modules for best output performance. The maximum achievable output using standard 20Voc solar modules will be approx 35amps @ 14.4Vdc
| Panel Array | Rated Wattage & Volts | Open Circuit rating | Estimated DC Amps Output (## See Below) |
|---|---|---|---|
| 1 | 150watt @ 20Voc | 150watts | 10 |
| 1 | 200watt @ 43Voc | 200watts | 13 |
| 2 | 150watt @ 20Voc | 300watts | 21 |
| 2 | 200watt @ 43Voc | 400watts | 27 |
| 3 | 150watt @ 20Voc | 450watts | 31 |
| 3 | 200watt @ 43Voc | 600watts | 42 |
| 4 | 150watt @ 20Voc | 600watts | 35* |
| 4 | 200watt @ 43Voc | 800watts | 47** |
| 5 | 150watt @ 20Voc | 1000watts | Not Recommended |
| 5 | 200watt @ 43Voc | 1000watts | Not Recommended |
* Maximum achievable output on the DC2DC+ unit when using 20Voc Solar Panels will be the approx 35amps. ** Maximum achievable output on the DC2DC+ unit when using 43Voc Solar Panels will be the approx 47amps.
IMPORTANT NOTE: Estimated Amps Output is quoted based upon PERFECT Solar conditions including Sun Angle, Panel Mounting angle and Orientation to the sun. It needs to be noted that panel performance alters dramatically between Summer and Winter periods and actual performance may be impossible to predict.
Accessories
| Enerdrive Part # | Description | |
|---|---|---|
| EN3DCREM |  |
Optional Remote Control for ePOWER DC2DC Chargers with 7.5m cable |
| EN3TEMP |  |
Replacement Temperature Sensor to Suit ePOWER Chargers |
Note: Specifications subject to change without notice.
Downloads
- DC2DC+ User Manual Rev 1.2(726kb)
- DC2DC+ Appendix A1 (76kb)
- DC2DC+ Appendix A2 (69kb)
- DC2DC+ Appendix A3 (86kb)
- ePOWER DC2DC In Vehicle/Marine Wiring Diagram

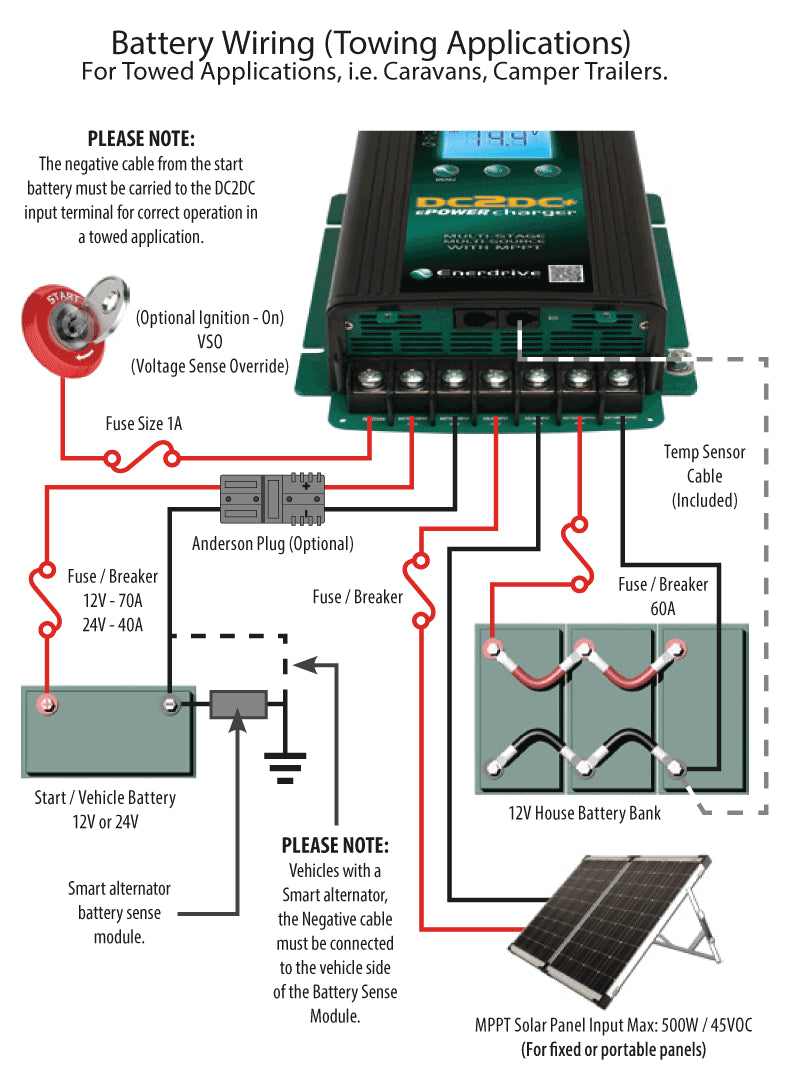

- ePOWER DC2DC Towed Vehicle Wiring Diagram
- ePOWER DC2DC Plus Brochure
- Smart Alternator/Relay Wiring setup for DC2DC Charger
- DC2DC Remote Panel Install/Operations Manual
