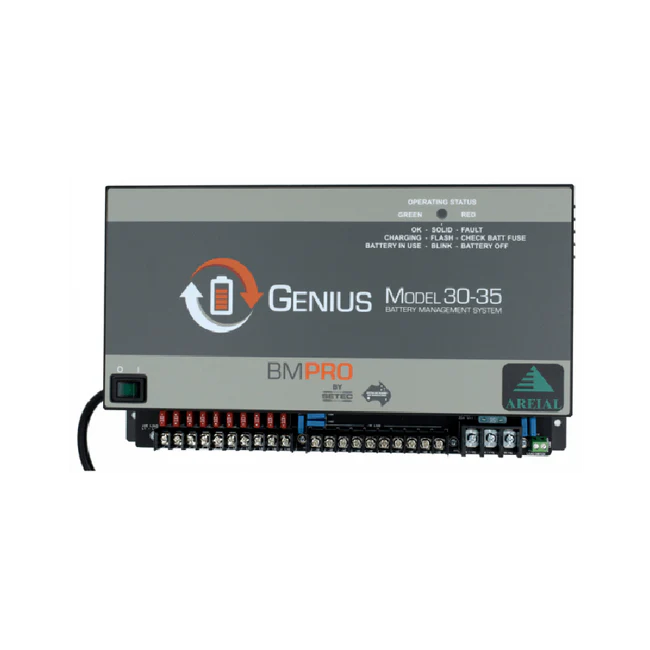

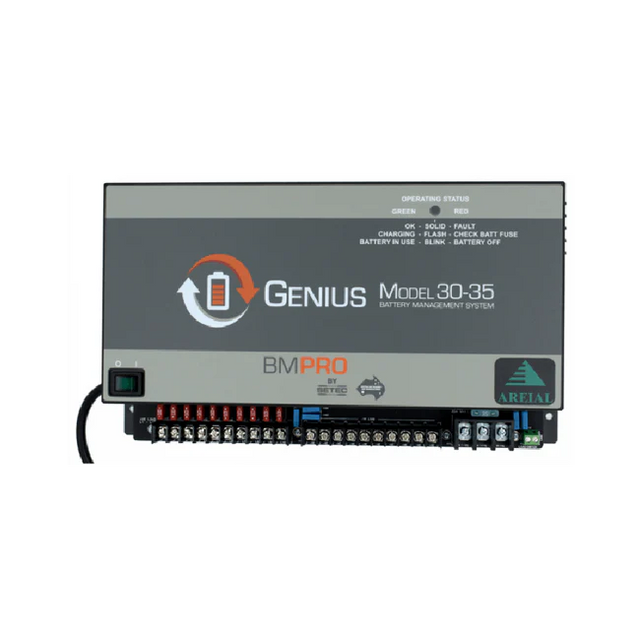

Designed and manufactured in Australia, the slim and sturdy Genius 30-35 chargers multiple deep cycle batteries faster.

*Suitable for high-amperage applications

*Various charge modes

*Battery protection features include – reverse, current limit, over-voltage, voltage current limit and fuse protection

*Compatible with all lead acid-type batteries

FEATURES
- Faster charge of multiple deep cycle batteries.
- AC input (240V nominal)
- DC input (13.6V nominal)
- Smart Battery Charger (Lead Acid)
- Load LVD switch
- Remote Load Isolating Switch Input
- DC distribution for 10 loads with fuse protection (Terminal Block)
- Temperature controlled fan
- The Genius 30-35 is a 30A charger with a total of 35A output to loads.
- You need to connect your solar panels via a regulator directly to the battery bank. The Genius does not have a built in solar regulator and you should not connect any solar regulators to the Genius.

Designed and manufactured in Australia, the slim and sturdy Genius 30-35 chargers multiple deep cycle batteries faster.

To ensure that batteries are optimally charged and ready to use, the Genius has enhanced management capabilities such as boost charge, float charge, store charge and trickle charge modes. To ensure problem free charging, this device can also accept charge through an optional DC input.

The Genius has a range of battery protection features. They include reverse battery protection, battery current limit, over voltage protection, voltage current limit and fuse protection. The low voltage disconnect facility protects the battery against excessive draw. This device also hosts a thermally controlled fan to make sure that noise levels are kept to a minimum.

SPECIFICATIONS
- Input Voltage Range: 240V AC ± 10% (nominal), 50-60Hz
- Input Surge: <40A (cold start)
- Holdup Time: <10ms
- Output Current: 35A continuous (load + battery current)
- Factory Set Voltage: 13.65V ± 0.1V (float voltage)
- Load Regulation: <2%
- Output Ripple Voltage: <150mV
- Overvoltage Protection: <17V
- Overcurrent Protection: 35A - 38A (load + battery current)
- Battery Current Limit: 15A ± 3A
- Battery Connect: 11.5 ± 0.2V
- Disconnect: 10.0 ± 0.2V
- Battery Drain: <3mA
- Efficiency: >84%
- Cooling Fan: Thermally-controlled
- Ambient Temperature: 0°C to 50°C
- Ambient Temperature: 0°C to 50°C
