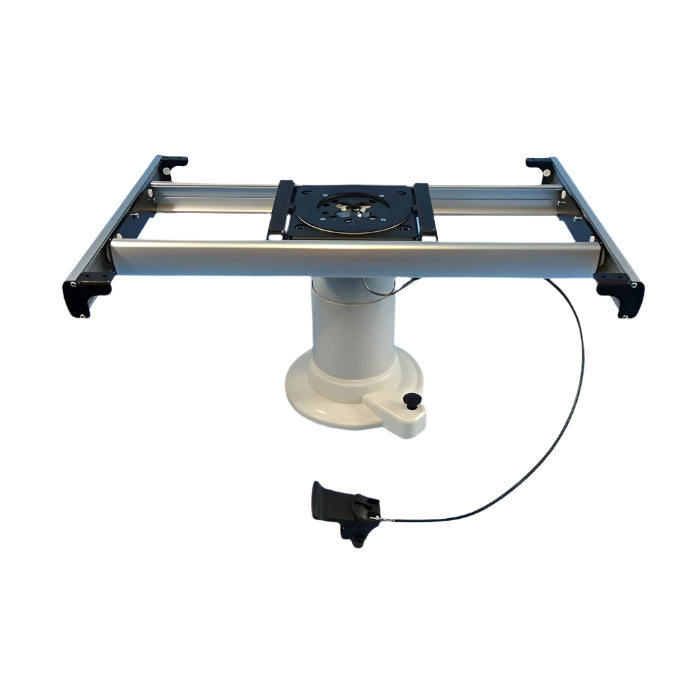

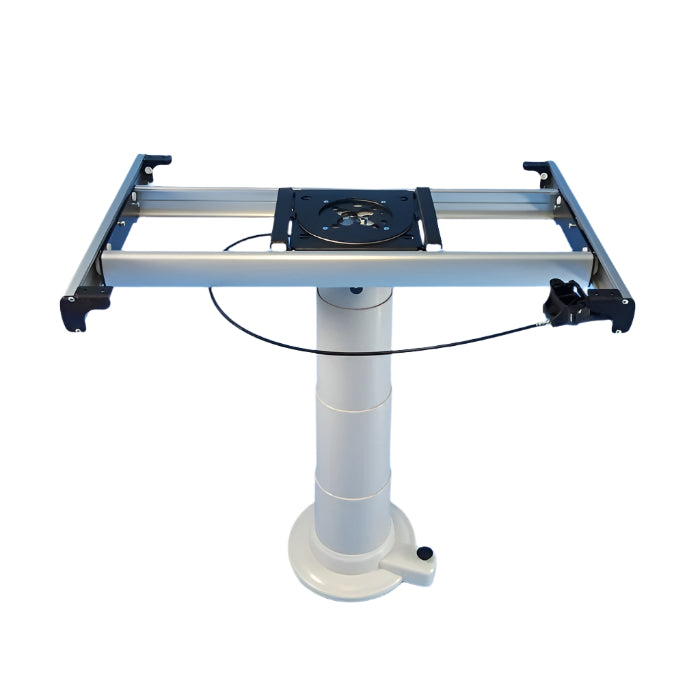

Table Leg Telescopic & Adjustable w/turntable sliding system. 0612500ETUG (3 Part pick)

The Nuova Mapa is a fully adjustable telescopic table leg with turntable and slide system, that can also convert to an extra bed! The bed position is factory set at 330mm, though it can be adjusted from 330mm to 410mm. This measurement is taken from the underside of the tabletop to the floor.

SORRY NO PO BOX FOR THIS ITEM

Tabletop & fixing screws not included

Some incredible features include:

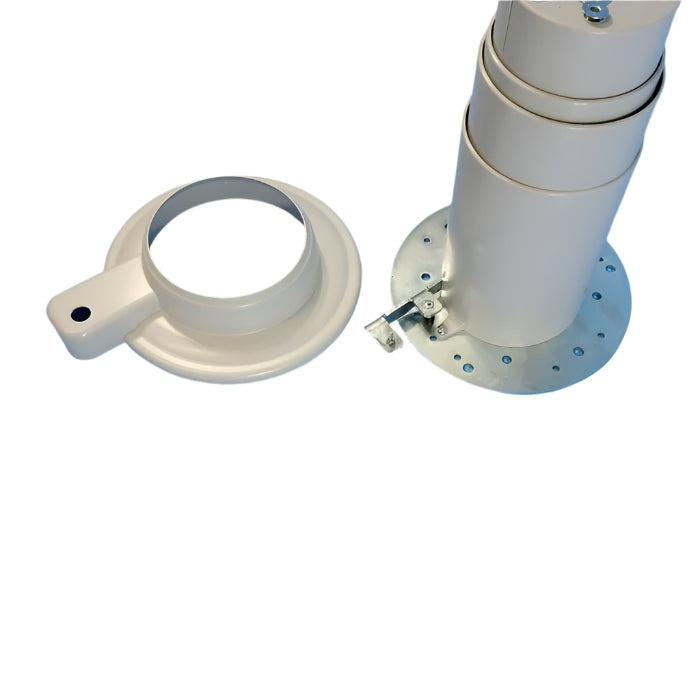

• How easy it is to install - simply screw the base plate onto the floor and you're good to go! (screws not supplied)

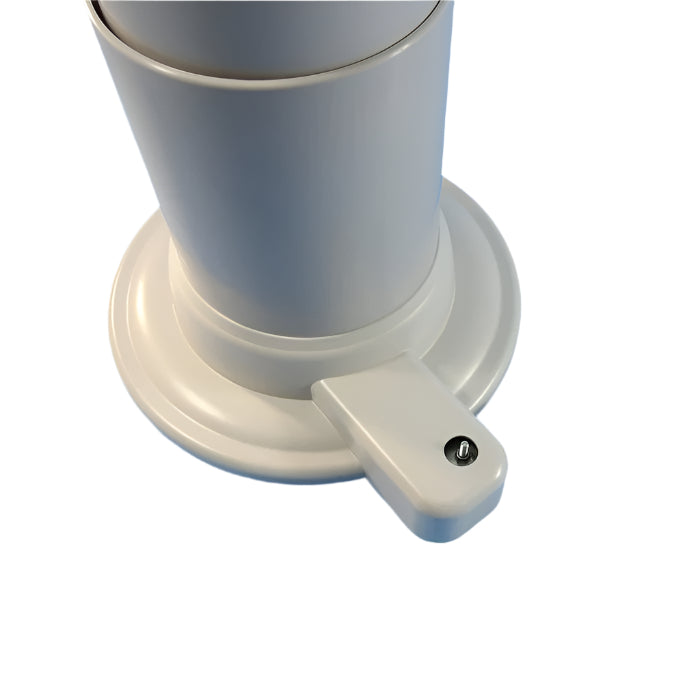

• Handy foot button that makes it easy to raise and lower

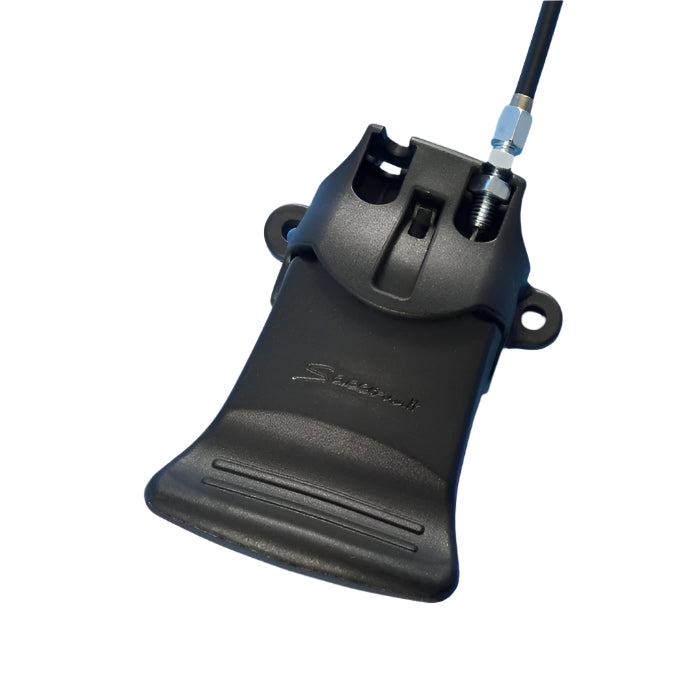

• Undermount release lever that allows the tabletop to slide and swivel into the required position
• The tabletop can move left or right, forward or backward, and swivel

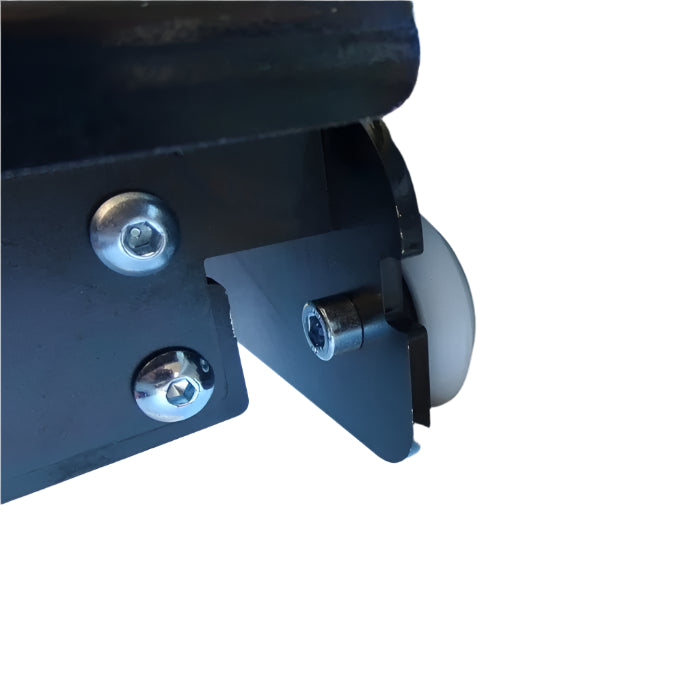

• Metal bearings make for a smooth sliding action
• Aluminium sliding mechanism
• Solid and robust design
• Can be adjusted from 330mm to 410mm
• Designed and manufactured in Italy

Specifications

• Maximum height (from floor to underside of table): 710mm
• Lowest height: 345mm
•  Table top bracket measurements: 700mm x 440mm
•  Base diameter: 250mm
•  Weight rating while in bed position is 100Kg.
•  Pre-set bed height of 330mm and can adjust up to 410mm
•  Table will slide
•  100mm to the front from centre
•  100mm to the back from centre
• 200mm to the left from centre
• 200mm to the right from centre
•  Unit Weight: 15kgs
• This table has no in-between hight adjustments.
• Table leg is a very light grey colour

Pdf - instructions
