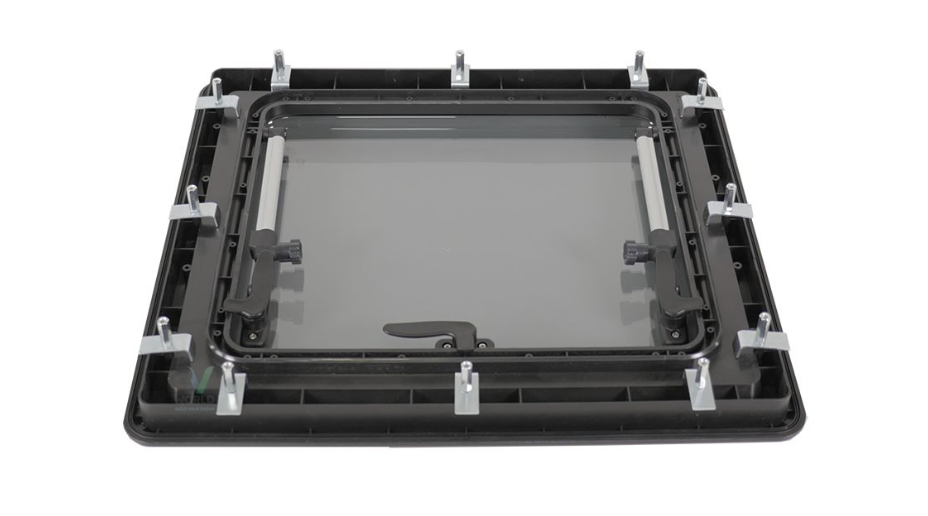

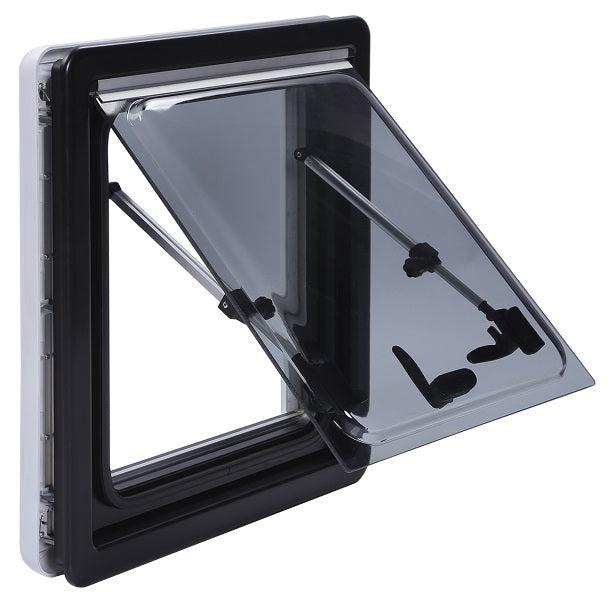

Ranger Classic/Cheng bang complete window system for motorhomes and caravans. Grey acrylic double glazed pane with integrated roller blind and fly net.
Features:
This window offers convenience and efficiency with its safety catches, telescopic arms, and double glazed acrylic pane. It also provides excellent thermal insulation and resistance to all weather conditions with its ASA frame. The retractable blind and fly screen are easily operated and held together with a magnetic feature. Installation is a breeze, with all mounting hardware included and easy-to-adjust brackets for added security. This window is suitable for wall thicknesses from 30-35mm and can be easily trimmed to fit for thinner walls.
Specifications:
Cut-out dimensions (mm): 1100W x 450H
External profile dimension (mm): 1130W x 480H x 26D
Internal trim dimensions (mm): 1125W x 475H x 35D
Wall thickness range 30-35mm
Internal Window hole approximately (mm): 1000W x 350H
Window Blade approximately (mm): 1050W x 390H
These Windows are predominately a 'Pre-ordered' Item. Once payment is received we will process your order with our supplier. **Please allow 10 to 14 business days to receive your blinds.
A shipping quote is required for items exceeding Australia Post Limits BUT it is always advised to give us a call for a shipping quote as in most cases Courier Rates are cheaper for these items. Most times items are shipped with StarTrack.
Installation guide.
| Product Code |
External Dimension (W x H mm) |
Cut Out Dimension (W x H mm) |
Weight / Kg |
Maxium Window Opening |
| RFW500300 |
529 x 329 |
500 x 300 |
3.2 |
32° |
| RFW500350 |
529 x 379 |
500 x 350 |
4.2 |
60° |
| RFW500450 |
529 x 479 |
500 x 450 |
4.2 |
78° |
| RFW600600 |
629 x 629 |
600 x 600 |
5.5 |
78° |
| RFW700400 |
729 x 429 |
700 x 400 |
5.5 |
80° |
| RFW700800 |
729 x 829 |
700 x 800 |
8 |
80° |
| RFW900350 |
929 x 379 |
900 x 350 |
6.5 |
60° |
| RFW900450 |
929 x 479 |
900 x 450 |
7 |
78° |
| RFW900550 |
929 x 579 |
900 x 550 |
8 |
80° |
| RFW900900 |
929 x 929 |
900 x 900 |
12 |
78° |
| RFW1000800 |
1029 x 829 |
1000 x 800 |
12 |
80° |
| RFW1100450 |
1129 x 479 |
1100 x 450 |
8.5 |
78° |
| RFW1200300 |
1229 x 329 |
1200 x 300 |
8.5 |
32° |
| RFW1200500 |
1229 x 529 |
1200 x 500 |
9.5 |
59° |
| RFW1450550 |
1479 x 579 |
1450 x 550 |
13 |
80° |
