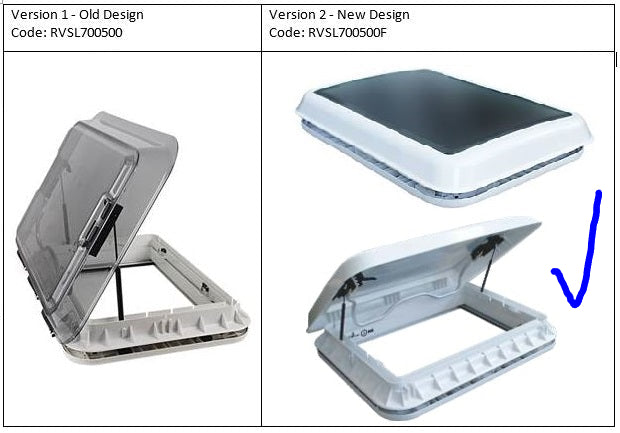

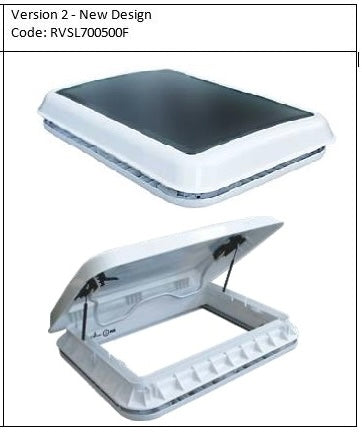

Complete Ranger Maxi Skylight with LED Version 2

Double glazed acrylic skylight with pleated folding block out blinds and fly screen, fitted with LED lights, cut out dimensions 700mm x 500mm.

Specification:

Cut out Dimensions: 700(W) x 500(D) mm
Installation Dimensions: 834 x 643 mm
Weight: 8 KG
Roof Thickness: 25 - 65 mm
Opening height: 15 - 80 mm
(Available in White)

Description:

Ranger Maxi Skylight is fitted with LED lights and switch. Comes standard with block out blind, fly screen and tinted double acrylic dome. Skylight is fitted with gas struts which makes opening simple and smooth and has internal locking mechanism for maximum security.

Maximum opening height is 80 with two opening positions. Manufactured from ASA which provides outstanding resistance to all weather conditions.

--------------------------------------------------------------------------------------------------

These Skylights are predominately a 'Pre-ordered' Item. Once payment is received we will process your order with our supplier.

** Due to current Supplier warehouse backlog, Please allow 2 to 4 weeks for delivery. However if we have stock, orders are shipped out within 24 to 48 hrs.

--------------------------------------------------------------------------------------------------

SHIPPING:

For items that exceed size or weight limits, a separate shipping quote will be required. We mainly ship with Australia Post or couriers such as StarTrack and Aramex.

In most cases, courier rates work out cheaper for larger or bulkier items. Please email us if you require assistance with arranging a quote.

--------------------------------------------------------------------------------------------------

Installation Guidelines:

Below you will find a list of Manufacturer instructions and guidelines which you must follow to ensure the longevity of the product.
1) We recommend adding 4mm to the cut out dimensions (eg: 700 x 500
roof cut out dimensions should be 704 x 504 mm).
2) Apply silicon to the skylight external frame/base. We recommend using
Bostik industrial grade silicone or similar. Place the external frame into
the cut out on the roof, use the supplied black L shape brackets to
secure the external frame into place and gently screw. It is vital that you
do not over tighten the screws as this can cause pressure on the frame
and result in a crack.
3) Remove the LED strip light covers on the internal frame. Connect the 12
volt wire on the internal frame to the caravan/RV. Line up the screw
holes on the internal frame to the holes on the L brackets. Gently screw
the internal frame to the bracket and place the LED strip light covers
back into place. Again it is vital you do not overtighten these screws as
the blind will not function as it should.
4) Clean the skylight with a damp microfiber cloth with water. No chemicals
should be used to clean the skylight.
5) Provide a copy of our warranty policy and user guide during caravan/rv
hand over to ensure customer understands how to operate the skylight.
